Umeå, Sweden

2007 - 2012

Umeå Arts Campus

Encompassing the Umeå School of Architecture and Art Museum, the Umeå Arts Campus embraces an interplay between creative independence and group synergy. Here, students a visitors immerse themselves in design, space and, light – surrounded by local Nordic materials.

Project details

Client

Baltic Group

Typology

Education, Culture, Urban districts and masterplans

Status

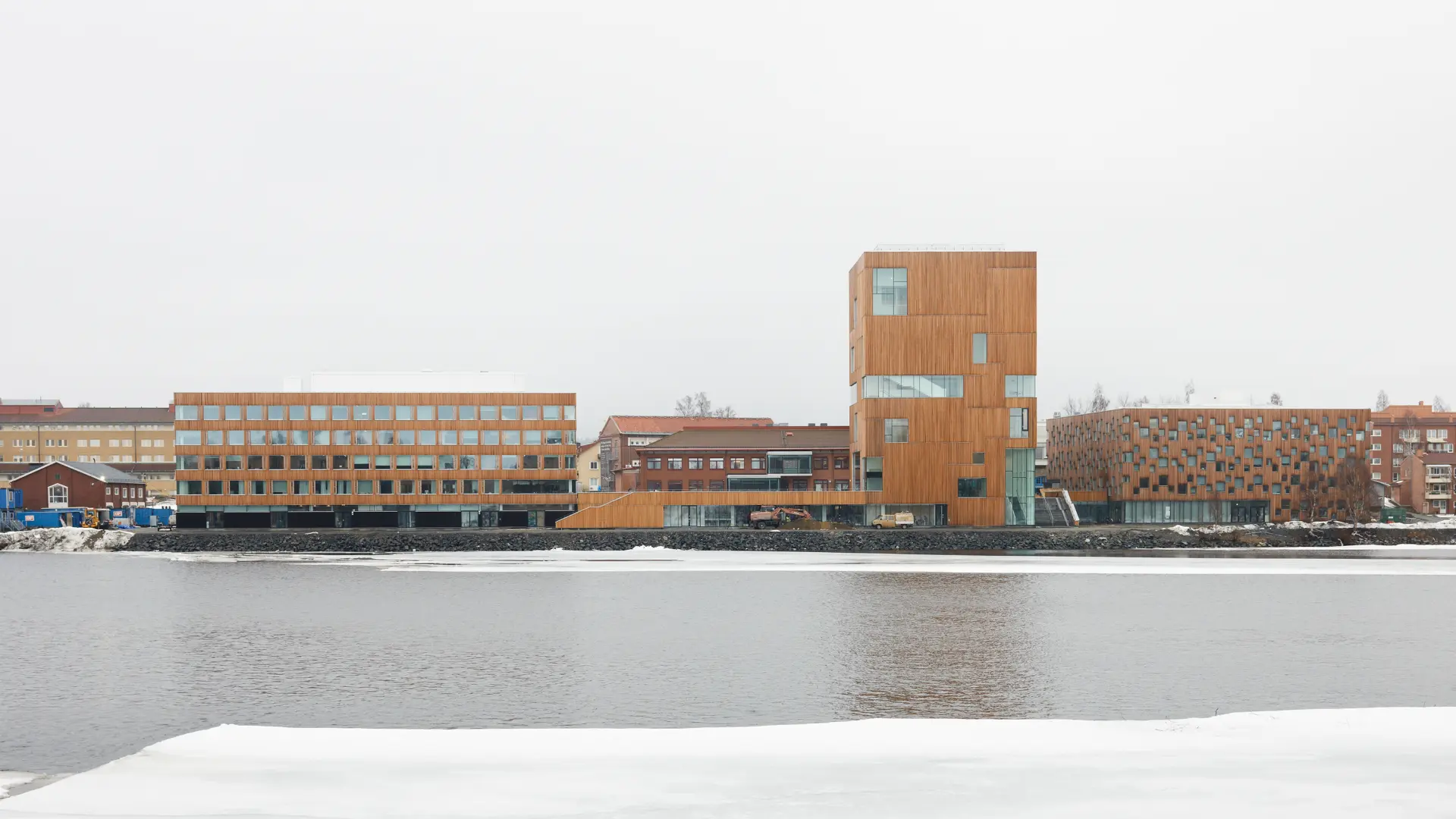

Situated along the riverside promenade close to the century of Umeå, the Umeå Arts Campus enhances the arts focus for both the university and city. The campus skyline is defined by three distinct buildings – Umeå School of Architecture the Museum of Art, both designed by Henning Larsen, as well as the Academy of Fine Arts.

The campus is grounded by a shared base that runs parallel to the river, connecting the three buildings physically and conceptually. This base houses common facilities, while the scale and form of each individual building reflects the surrounding urban context.

In 2013, the campus received the Civic Trust Award and was nominated for the Mies van der Rohe Award’s EU Prize for Contemporary Architecture. The year prior, it was honored with the Architype Innovative Education Project Award.

Åke E:son Lindman, 2010

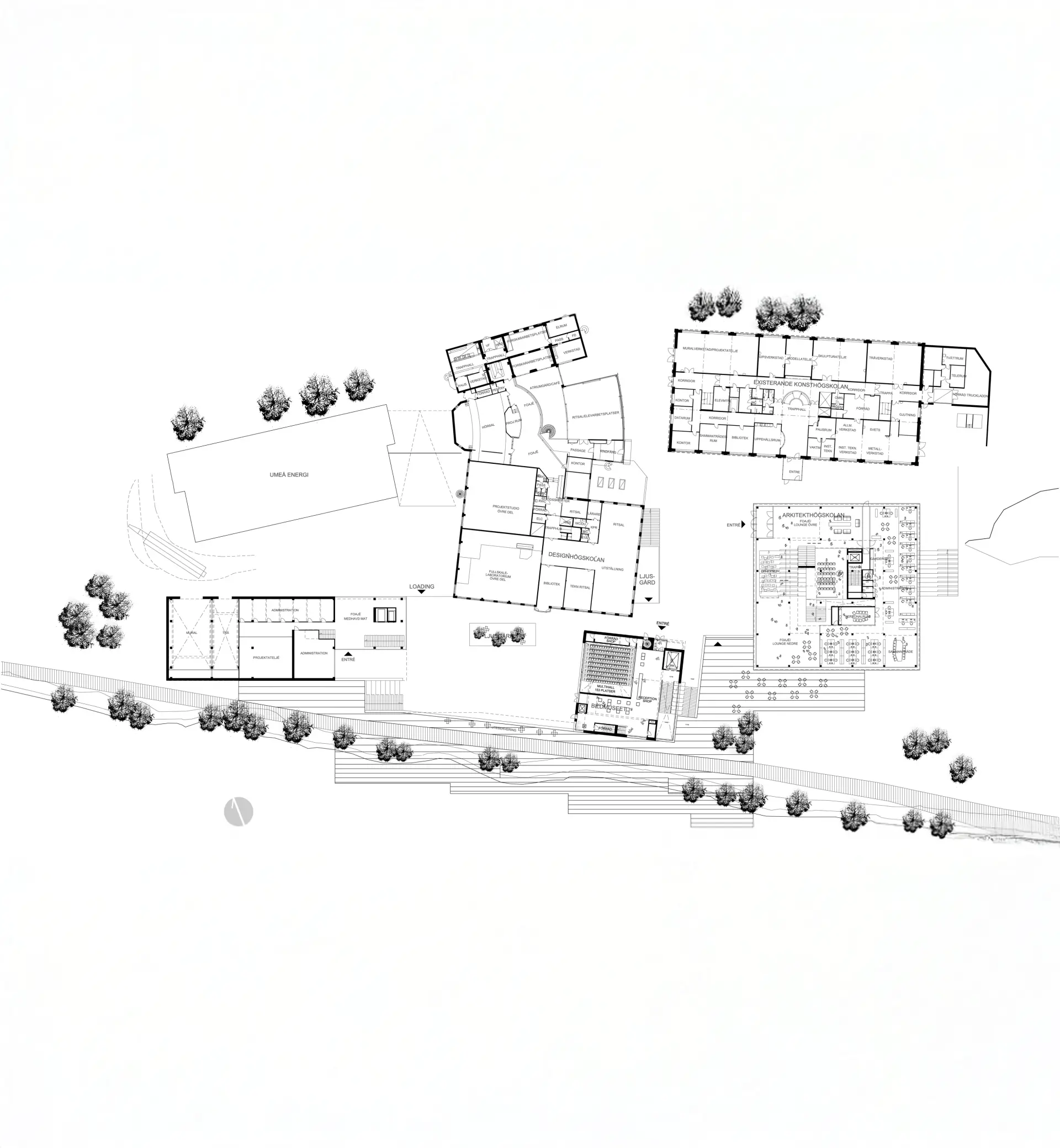

Site plan of the campus illustrating the structures' location to one another and the neighboring river promenade. The Museum and Architecture school, both designed by us, share a base that connects them to eachother and the Academy of Fine Arts.
Åke E:son Lindman, 2010

A contemporary art museum for Umeå

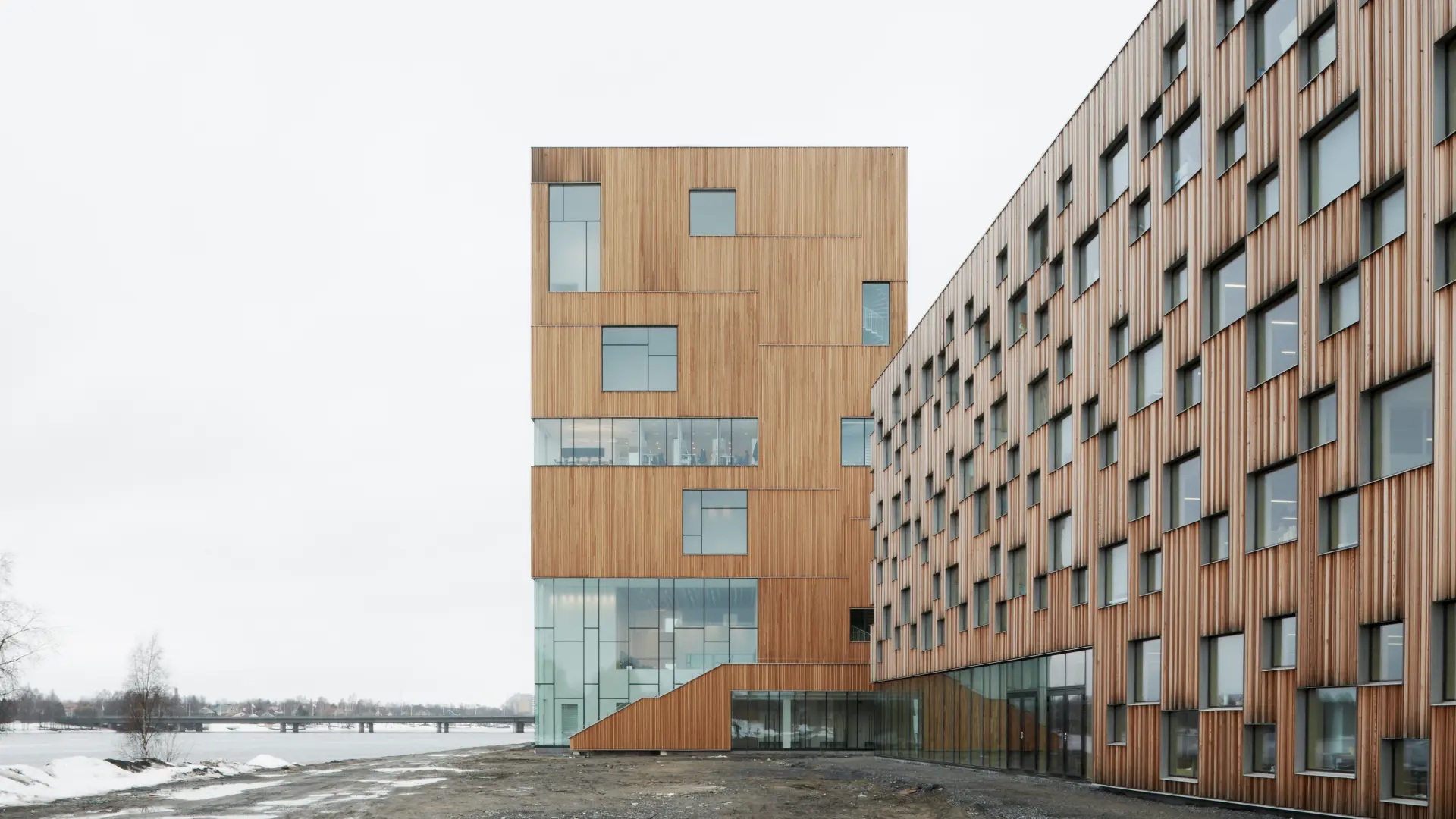

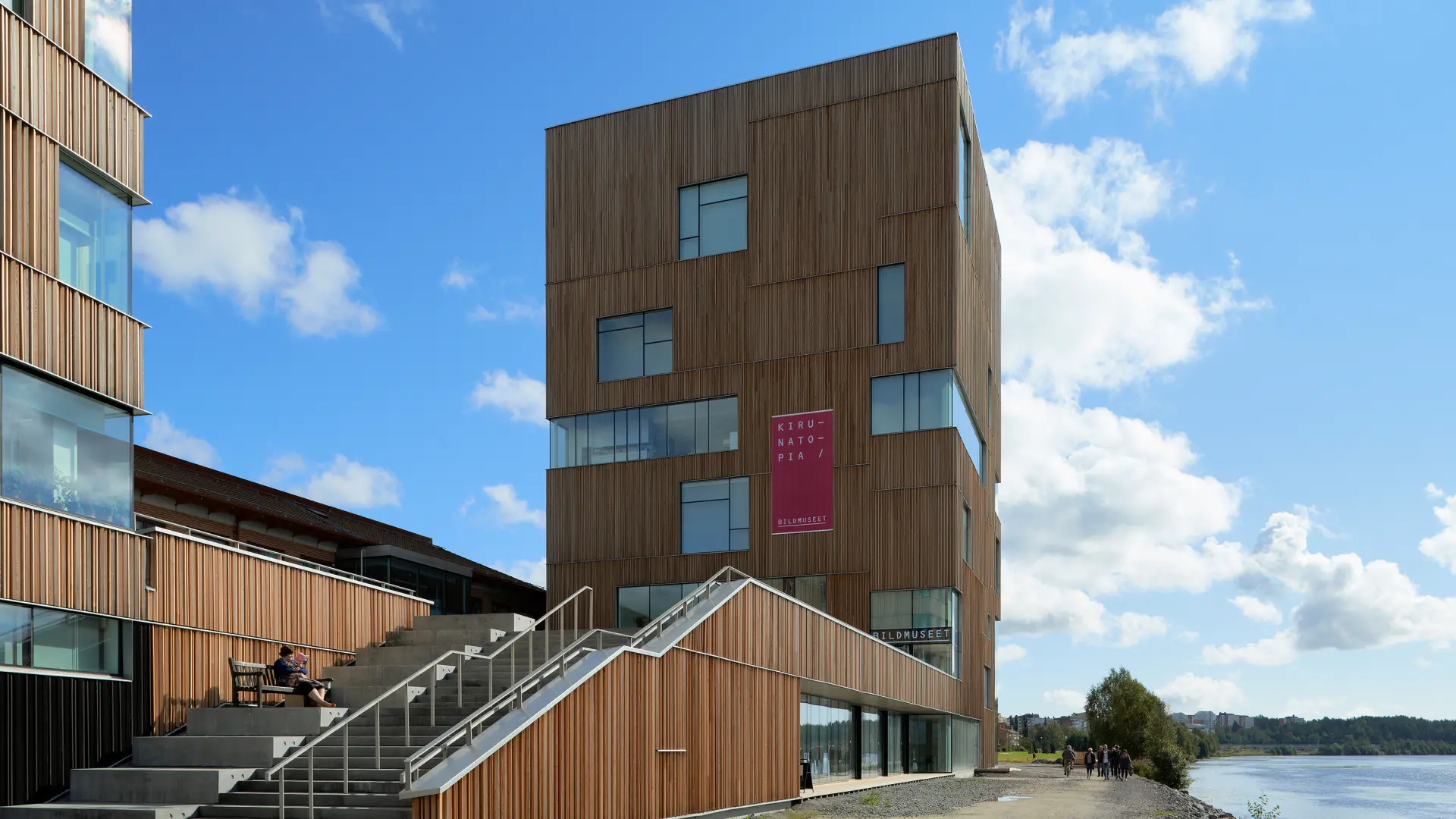

The Umeå Art Museum stands as a cultural landmark on the banks of the Umeå river. Hosting international exhibitions and embedded within the university’s creative sector, the contemporary museum acts as a hub for the production, exhibition, and discussion of contemporary art in multiple media.

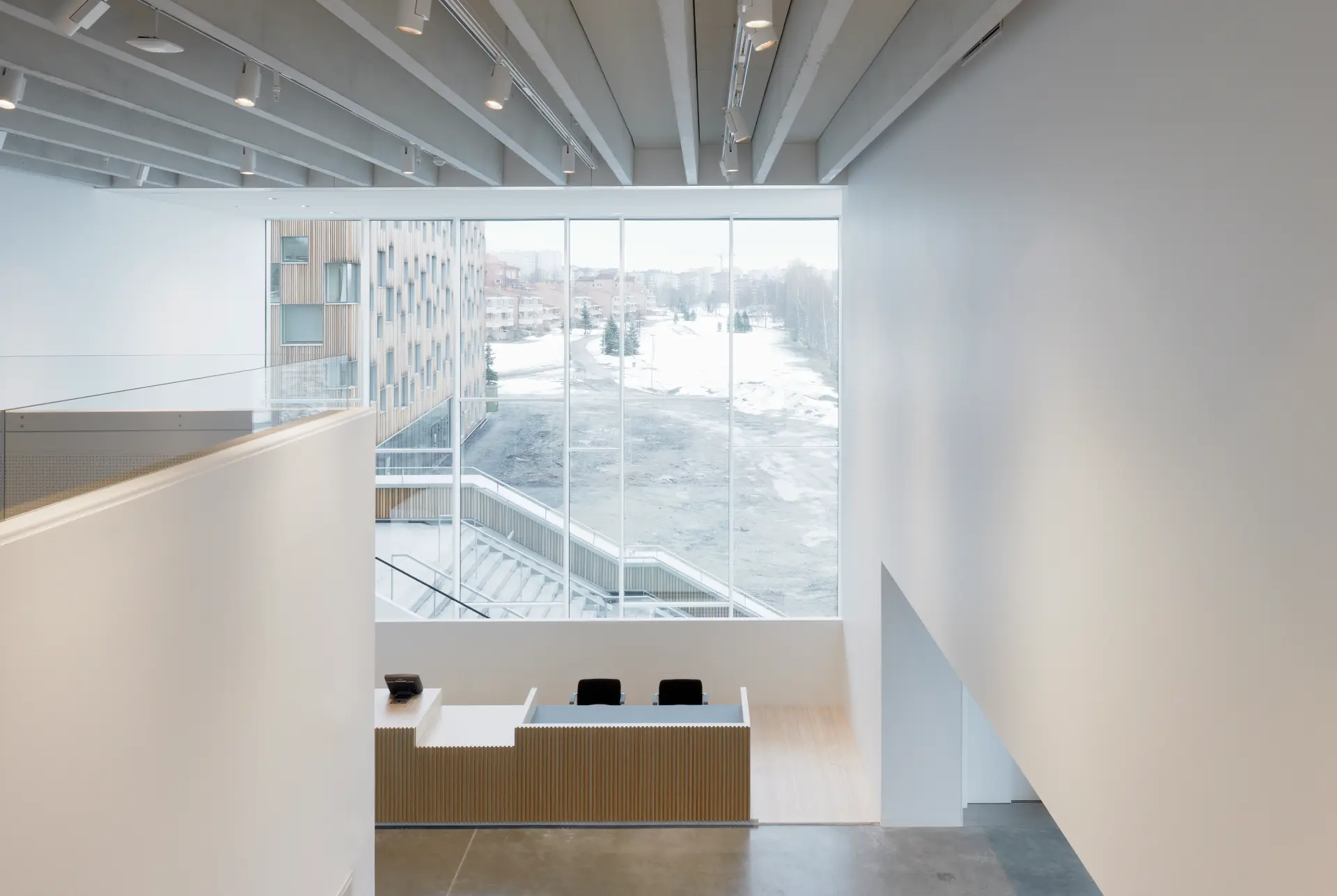

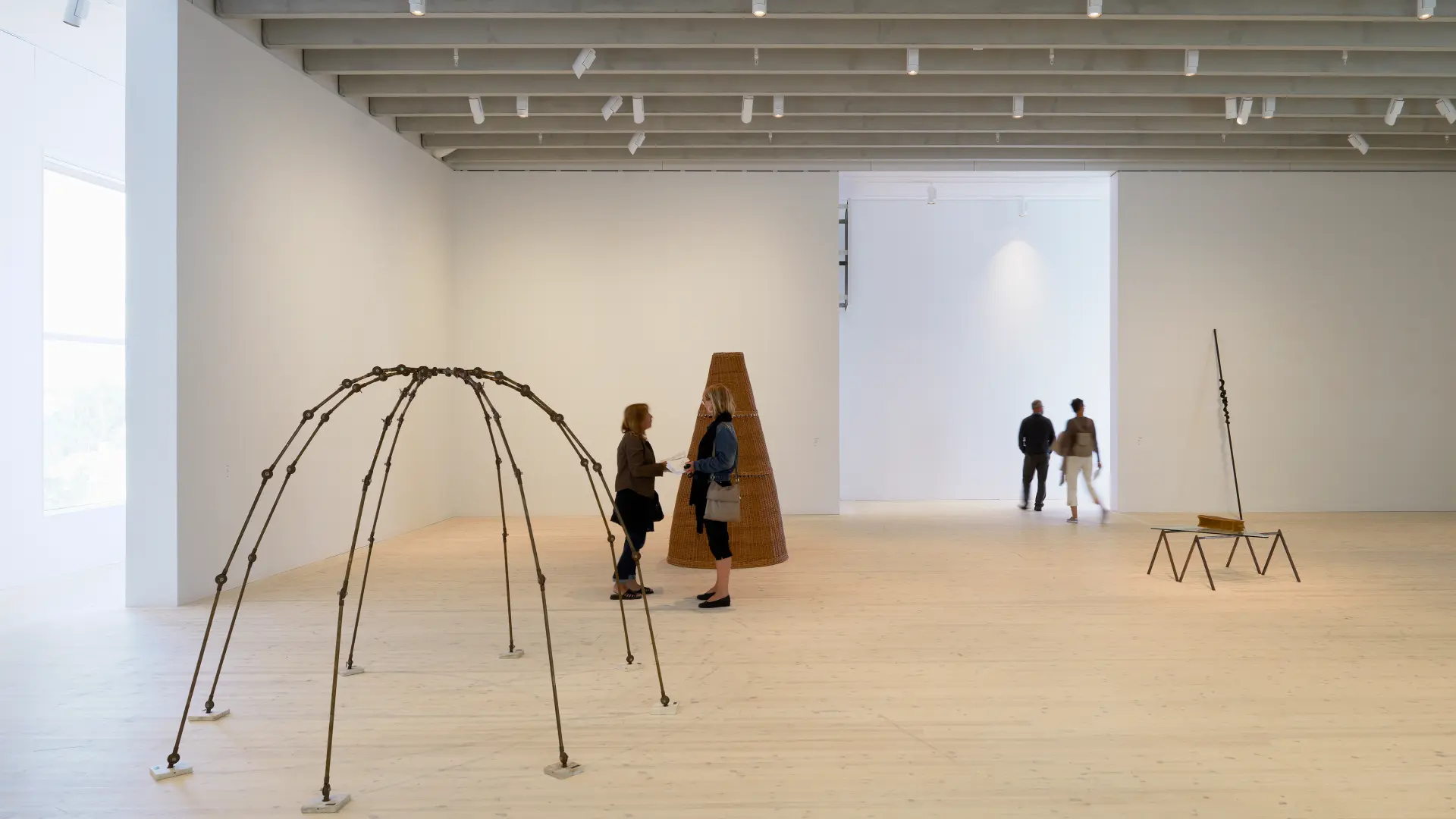

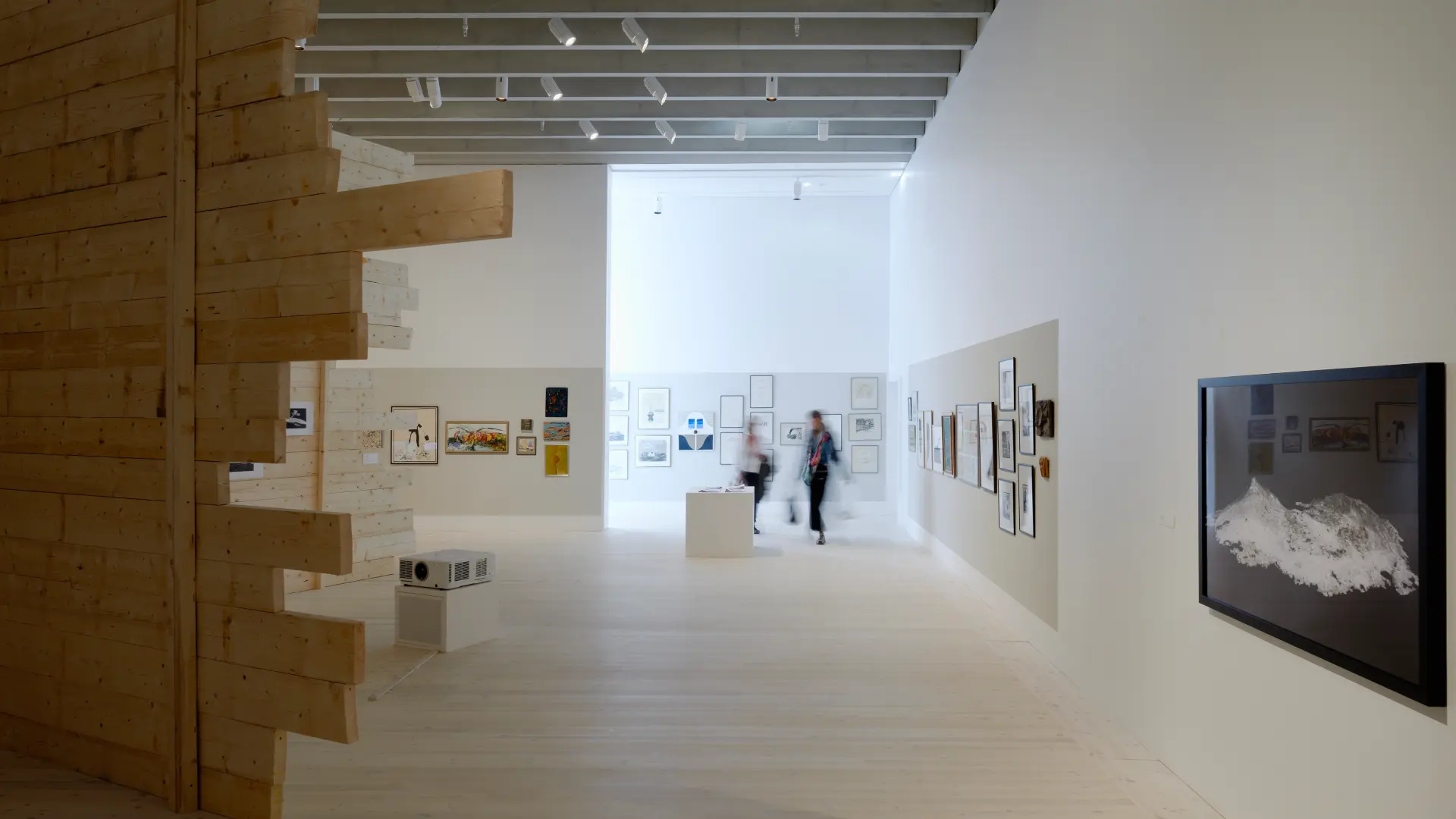

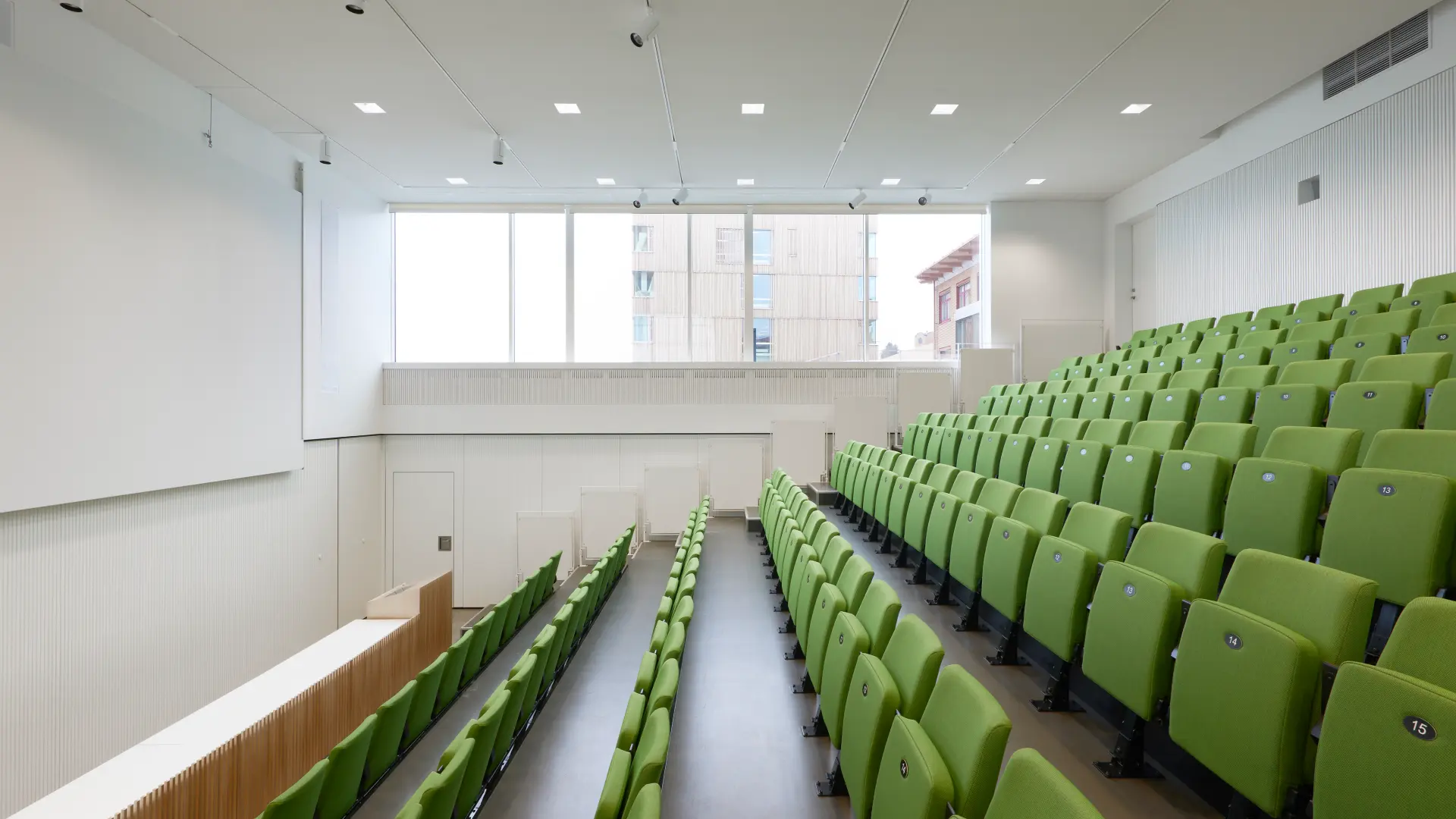

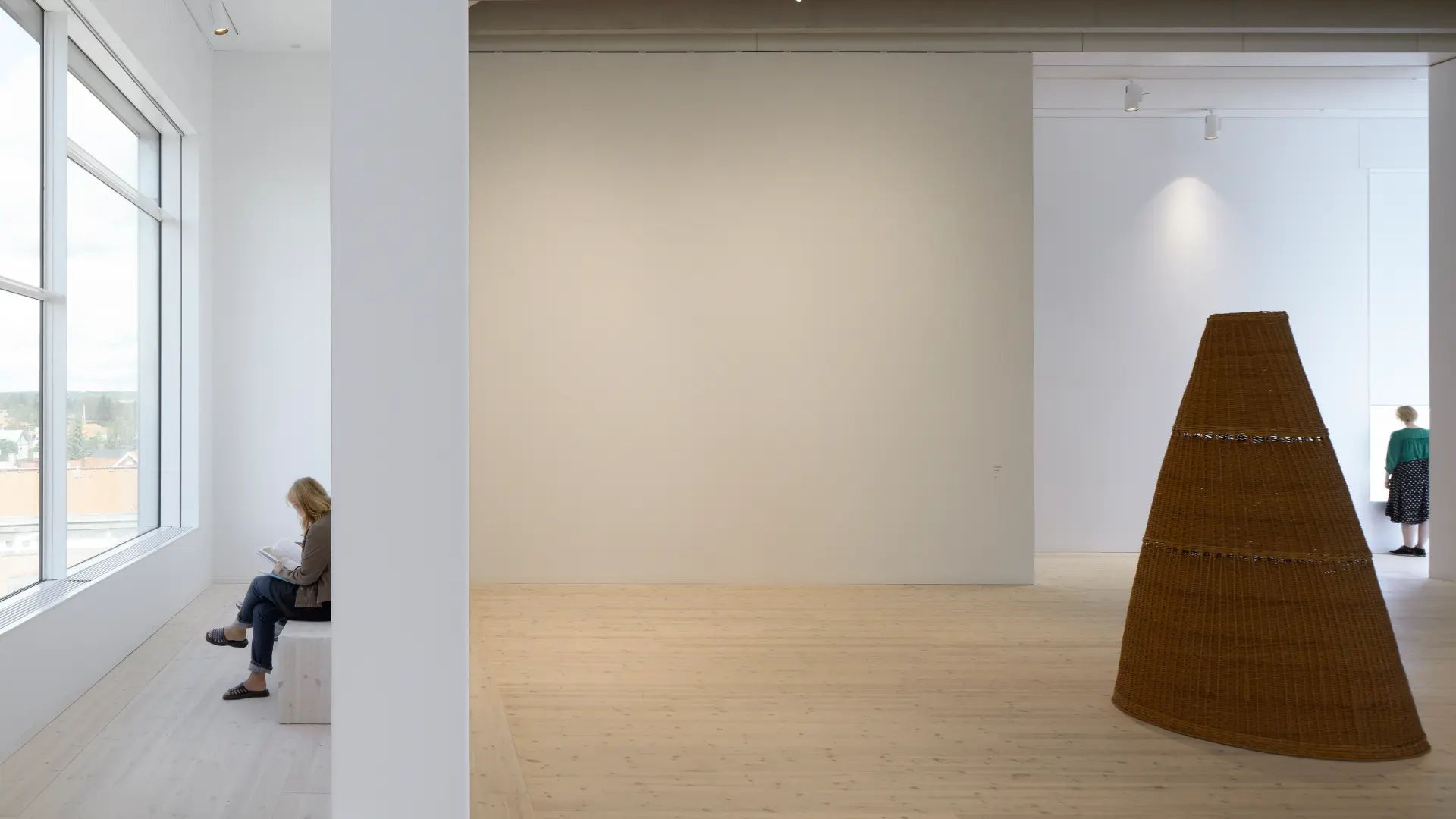

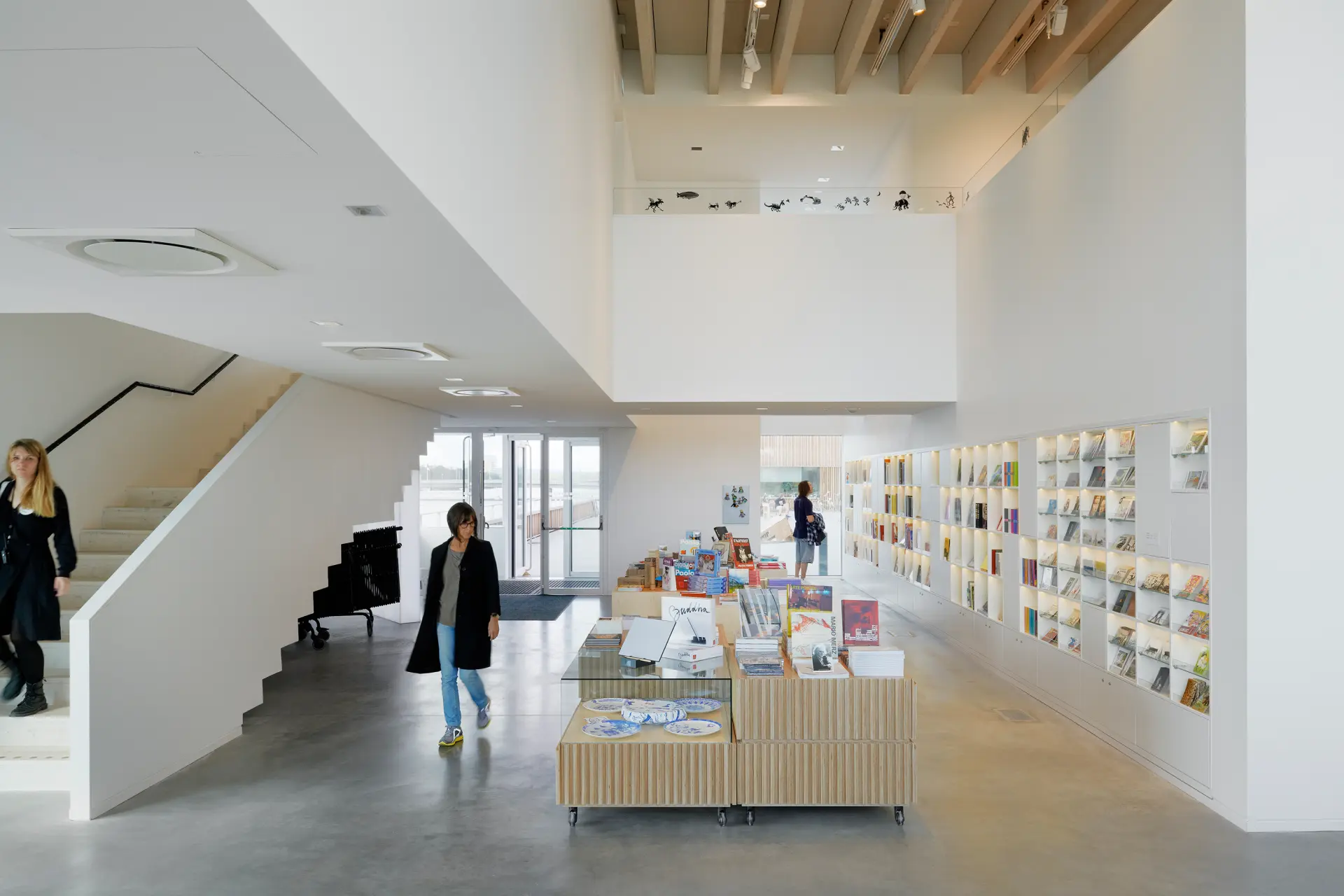

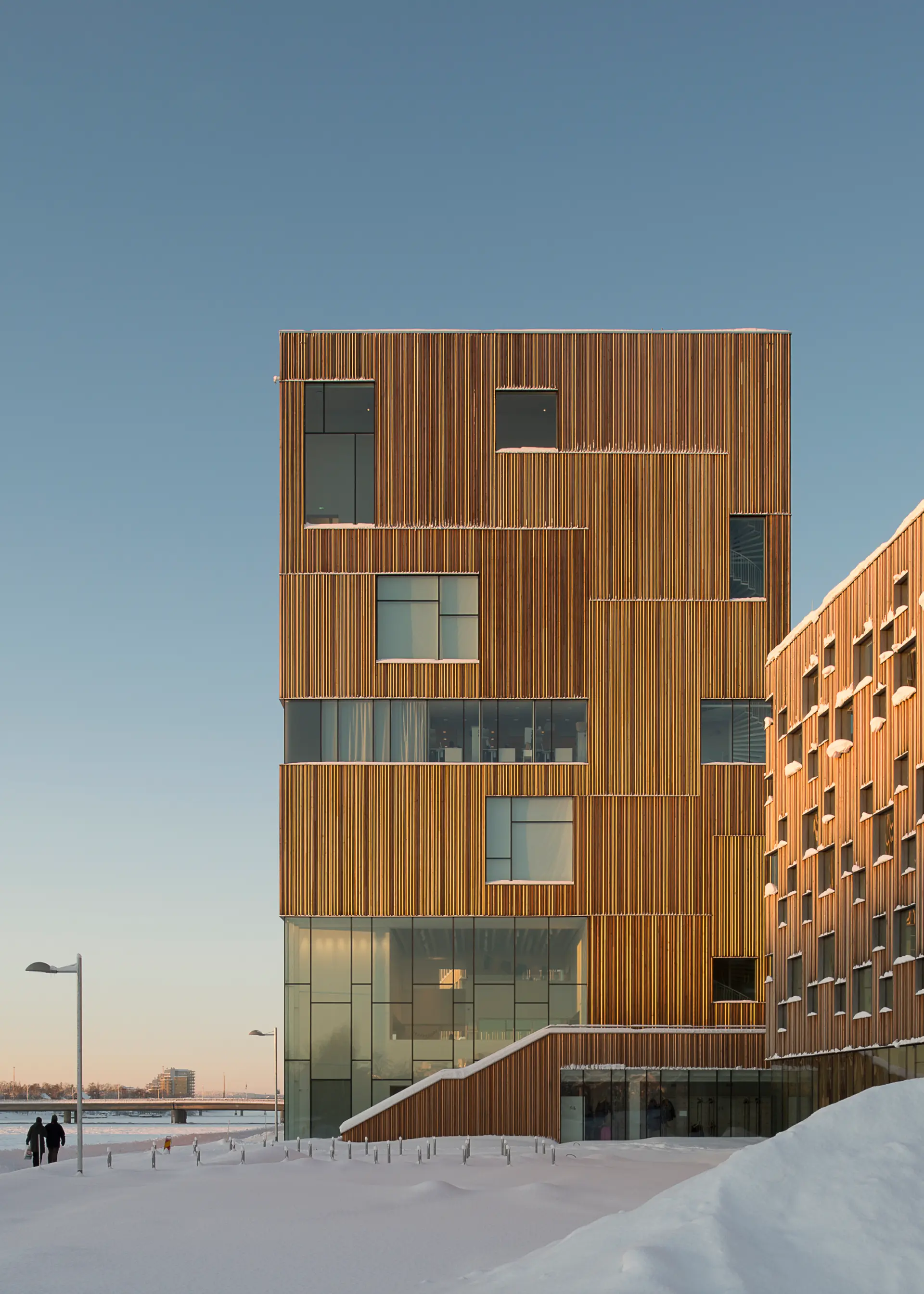

Built as a vertical tower, the museum comprises three stacked exhibition halls – each open and free from structural elements to allow flexibility in exhibition requirements – along with an auditorium, children’s workshops, and administrative spaces. Apertures in the façade let in soft daylight, creating dynamic settings for the art.

Åke E:son Lindman, 2010
Ake E:son Lindman, 2010

"Open space means that students are always able to see what their colleagues are doing, and that the different parts of the building are responsive and dynamically flexible to change."

Per Ebbe Hansson

Lead Design Architect

Designed for education

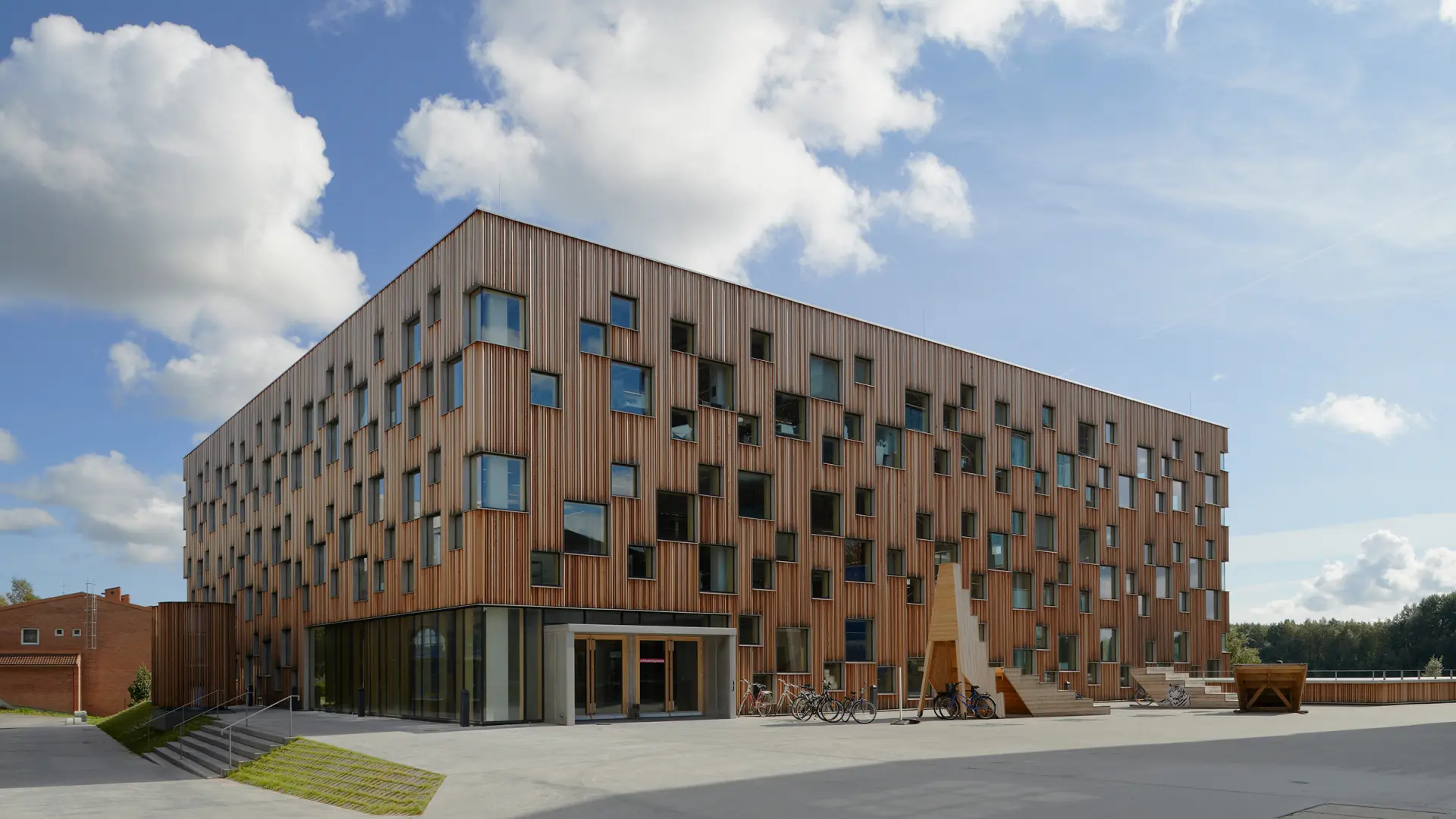

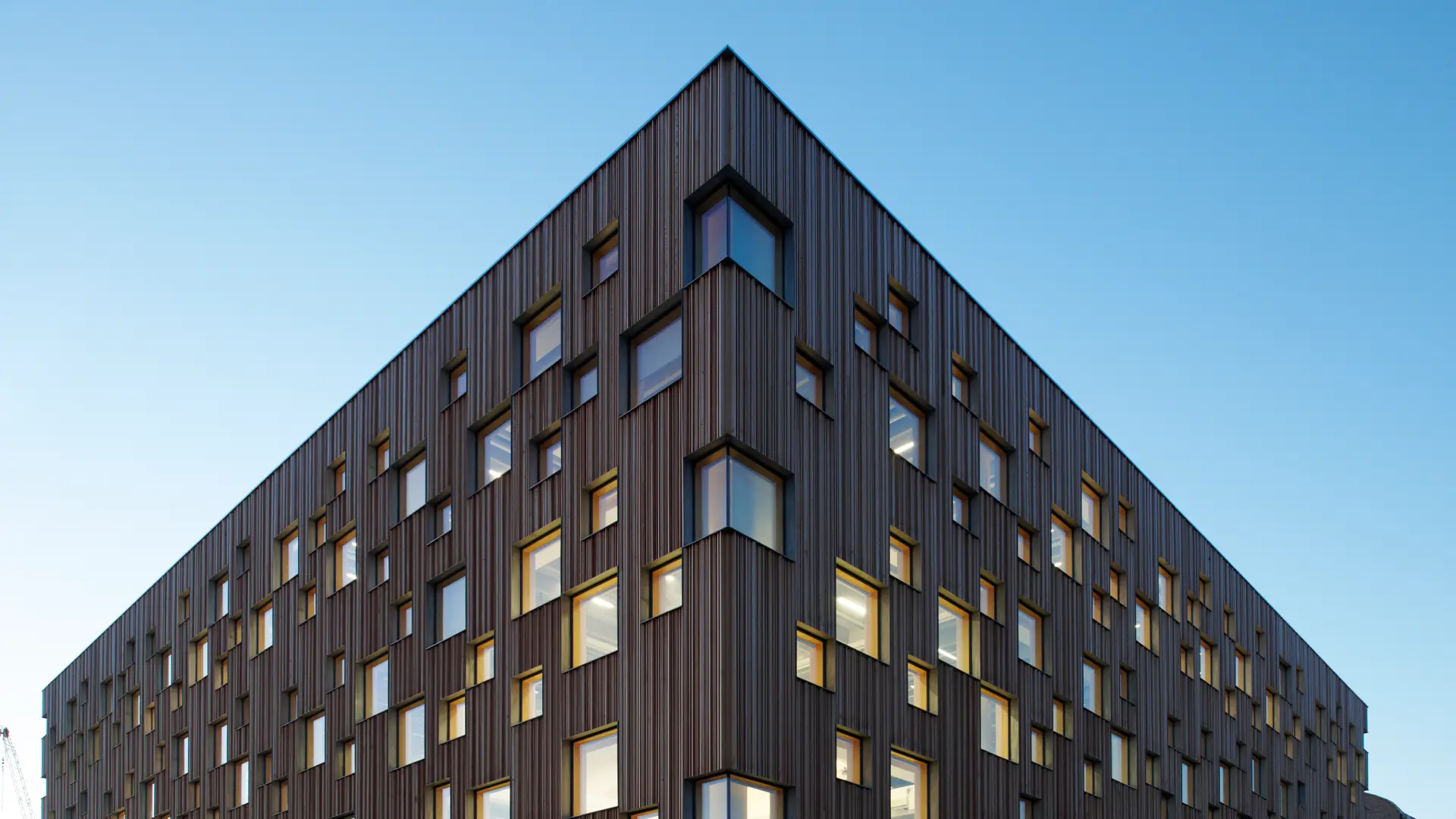

Situated far North on Sweden’s East coast, the contrast between the static and dynamic, and the light and dark, forms the cornerstone of our design for the Umeå School of Architecture. During both summer and winter months, ever-present nature serves as a source of inspiration for students. From the outside, the larch wood façade embeds the school into the surrounding campus.

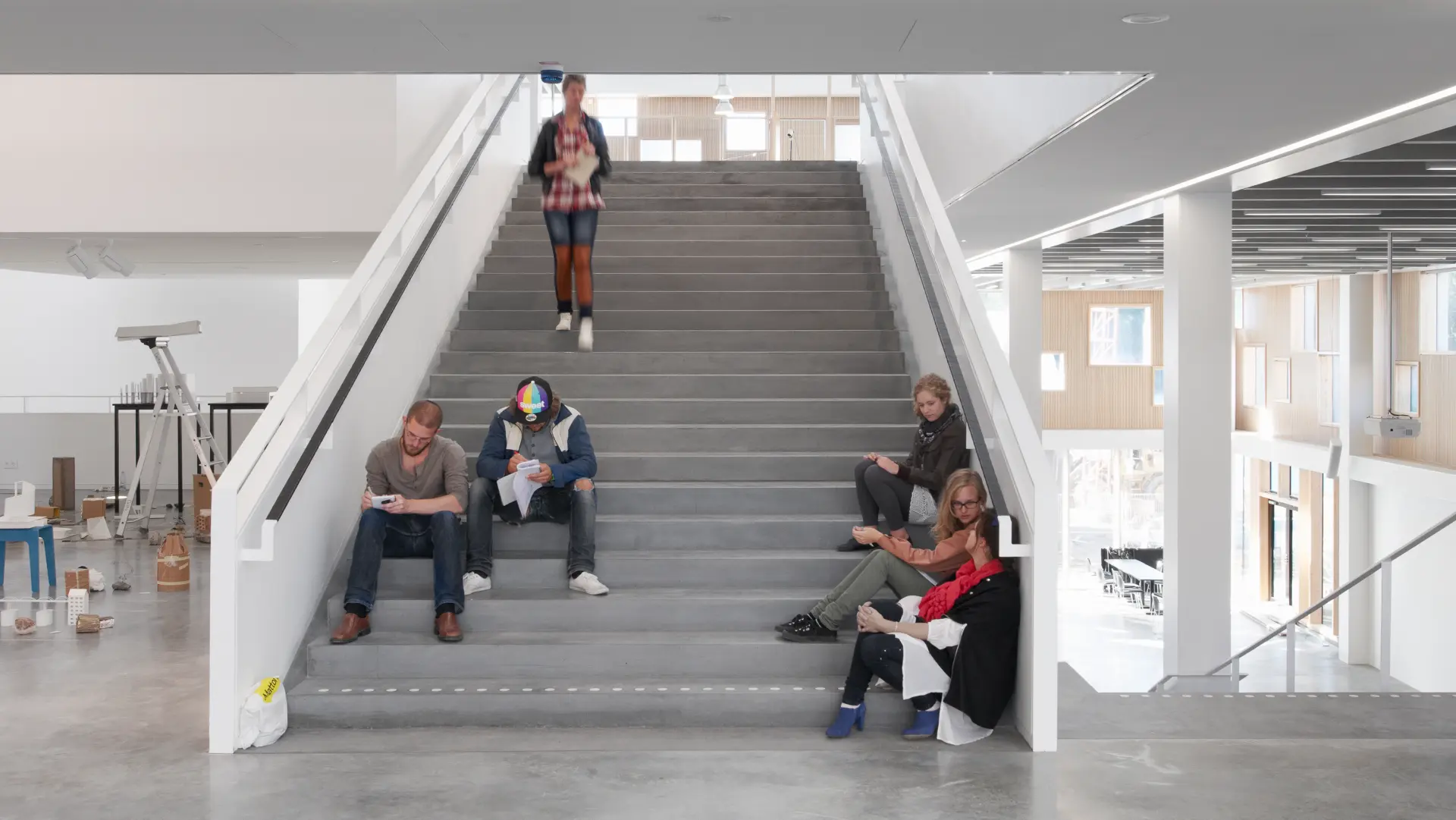

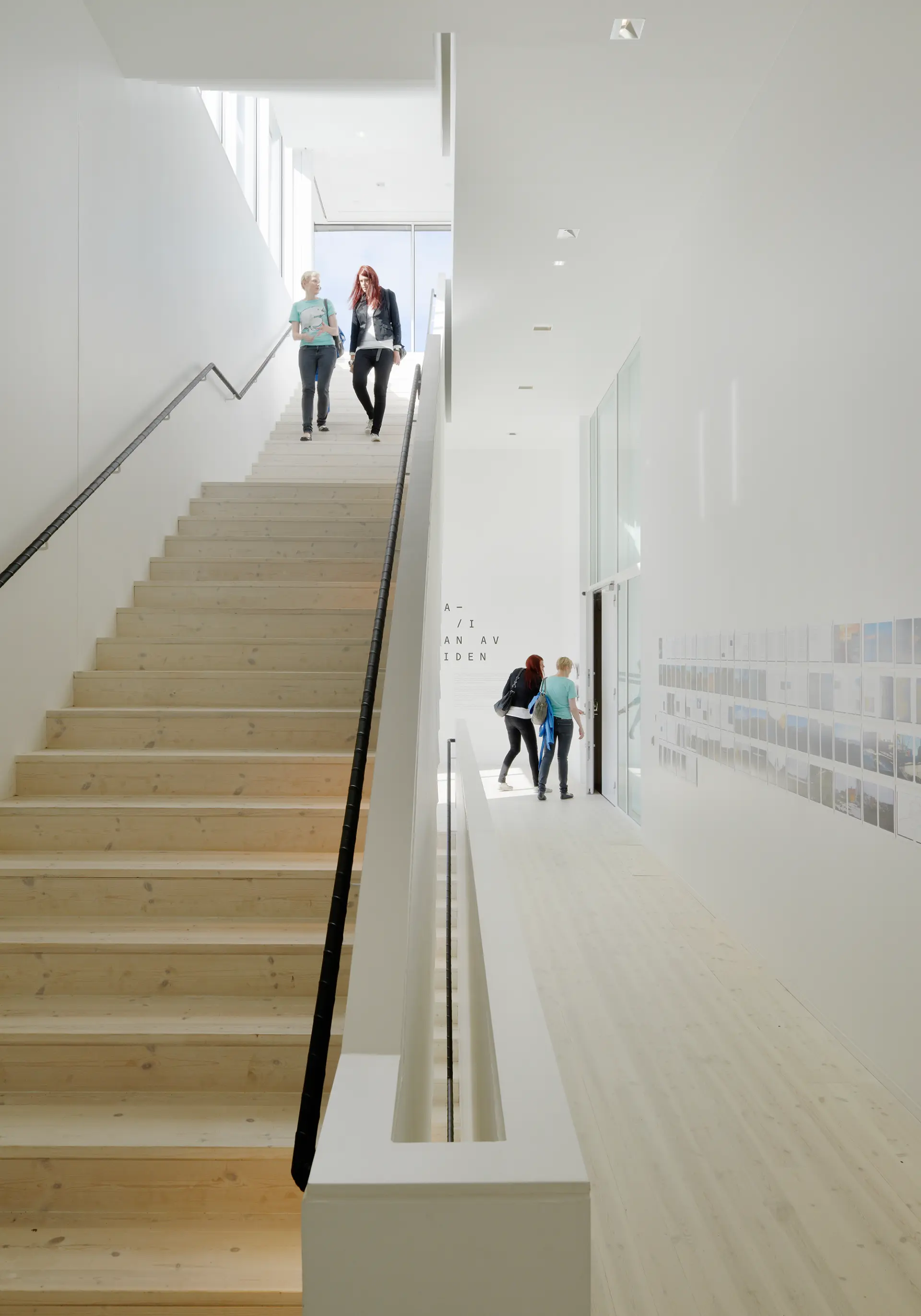

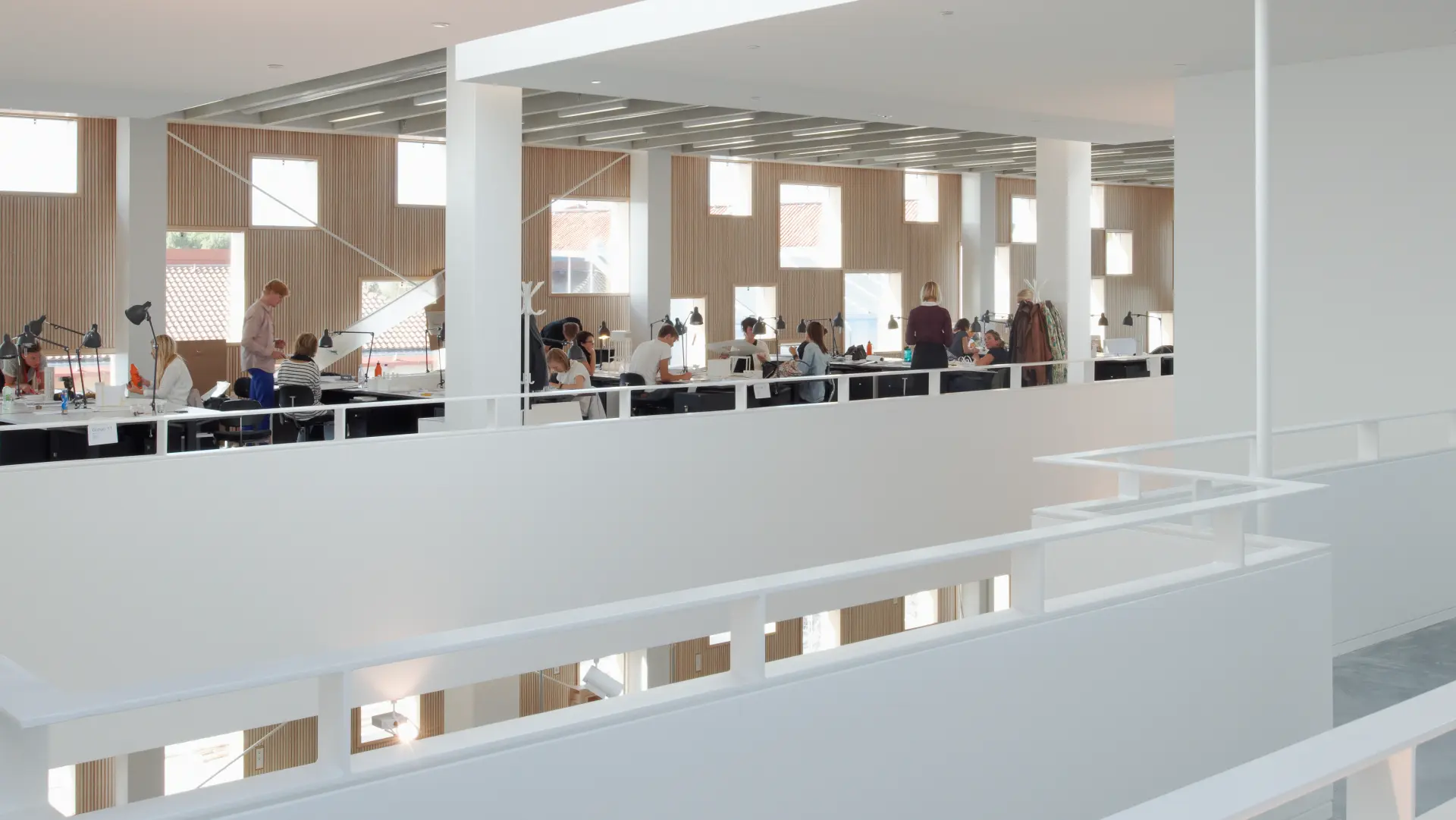

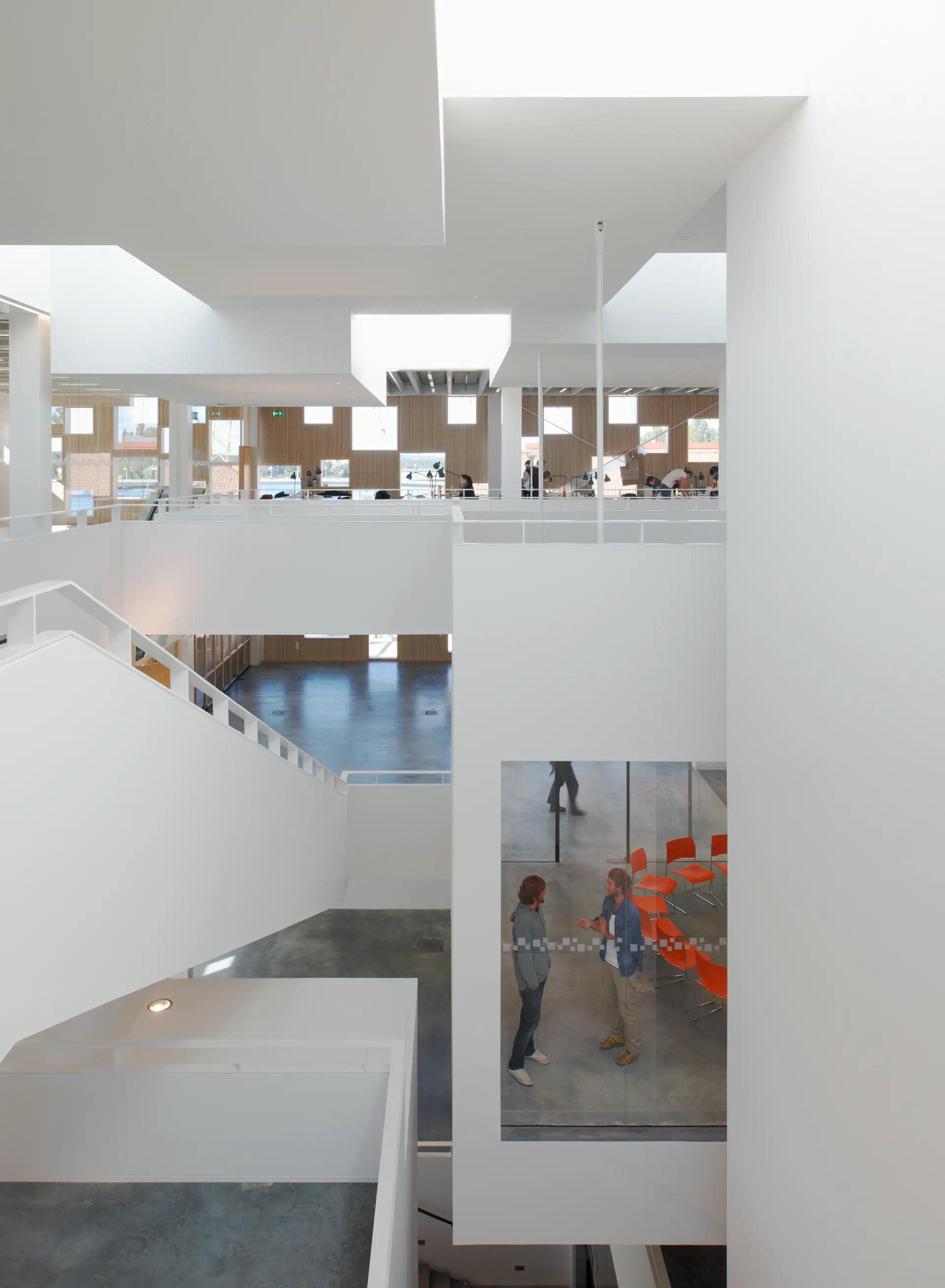

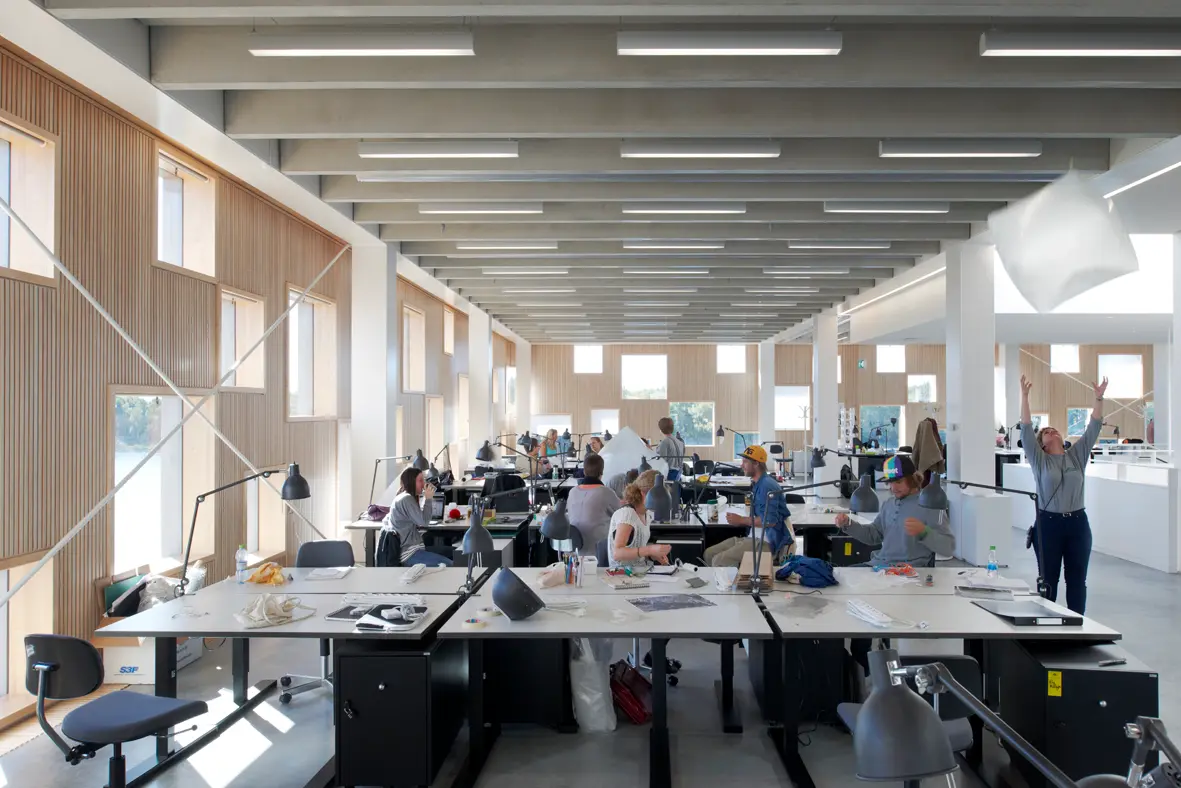

Inside, the architecture unfolds in a sequence of stairways, balconies, shifted levels, and suspended rooms-within-rooms. A central, vibrant atrium anchors the interior, framed by large, airy classrooms with rhythmic window openings that bring in daylight. One of the design’s key objectives was to create a bright, open study environment where students remain visually connected – separated only by split levels and glass walls. This open layout supports the opportunity for mutual inspiration and the exchange of ideas.

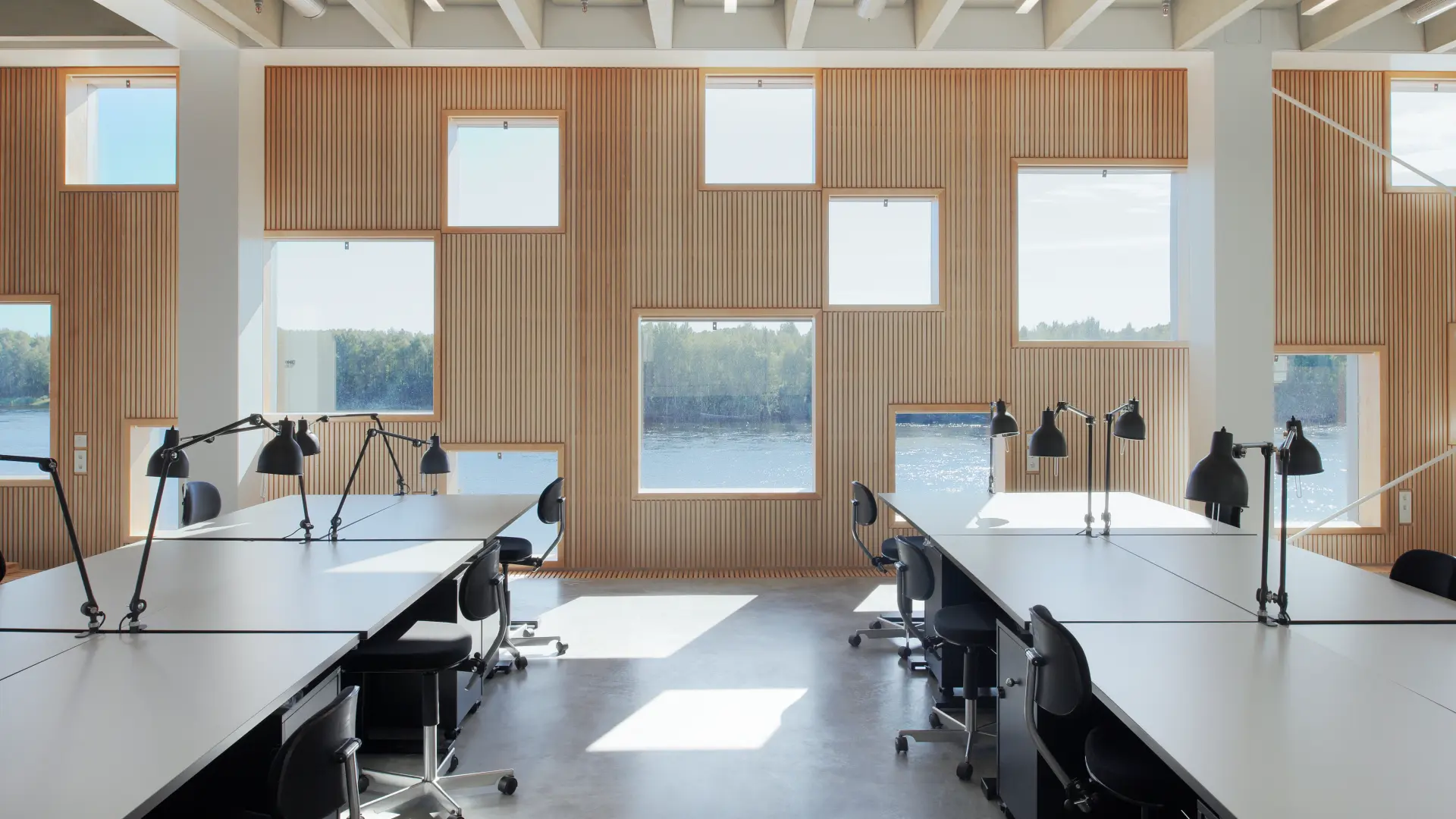

Studio spaces are arranged along the façades in a strict, regular grid of columns and beams, with a simple and rational design that supports creative flexibility. The varied window pattern gives the school a strong visual identity while providing views of the neighboring river.

Åke E:son Lindman, 2010

Inspired by local Nordic materials

The campus’ framework and façades are primarily made from prefabricated elements, which shorten the construction phase and reduce material waste. The materials used are robust, maintenance-free, and weather naturally. For example, the façade cladding with Siberian larch does not require any maintenance. The materials used are locally produced and have not required long transport distances. Robust and durable floors made of polished concrete create a consistent theme for all the buildings.

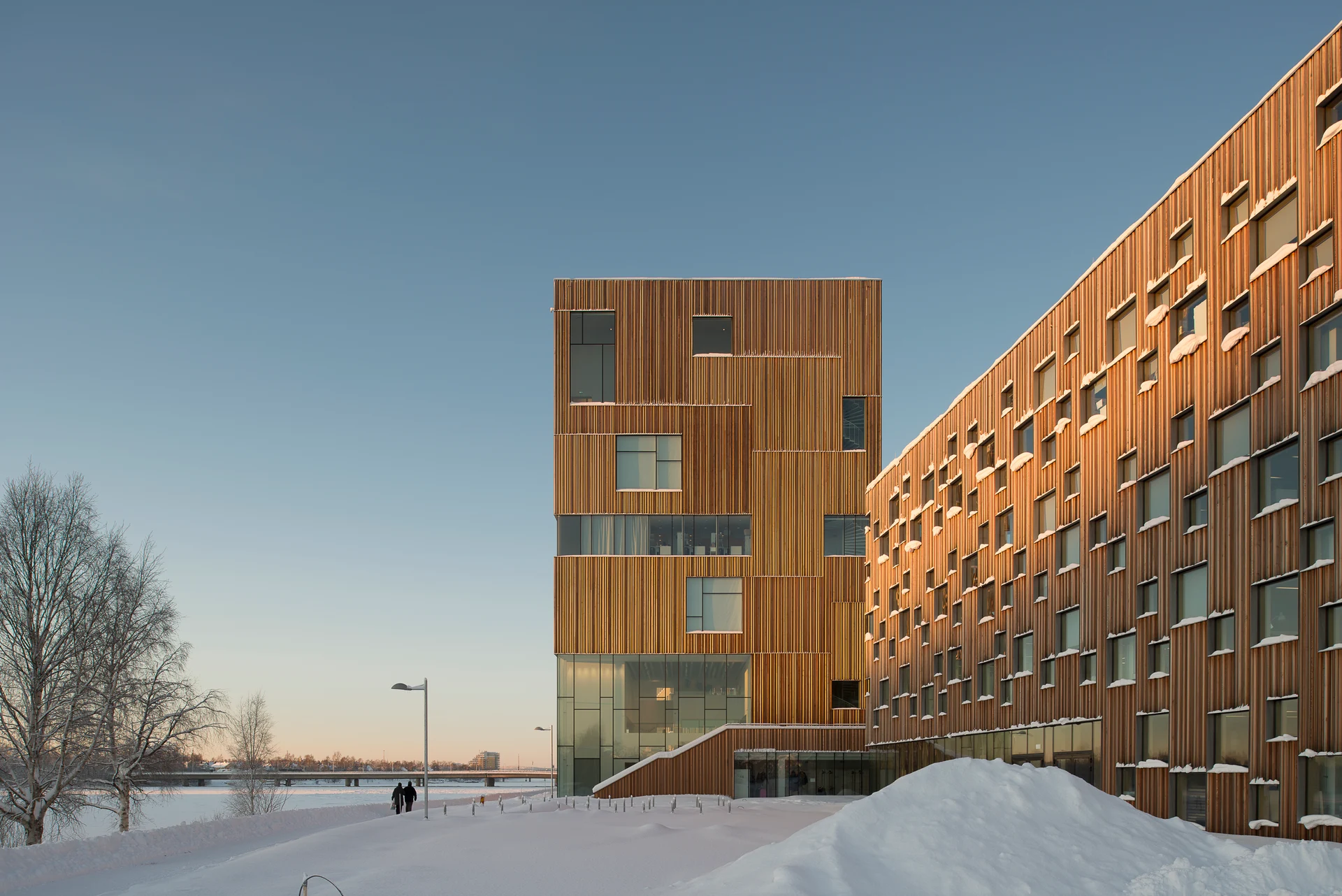

Lamella façades around the campus are inspired by surrounding birch trees and the water reflections from the river. The varied pattern of windows creates a strong visual effect and generously lets light pour far into the buildings, while at the same time offering breathtaking views of the Umeå River.

The Umeå School of Architecture is designed to consume 38% less energy than that required by local code requirements of similar buildings. The carefully calibrated window placements maintain a daylight factor of 3%, optimizing both natural lighting and energy efficiency throughout the year.

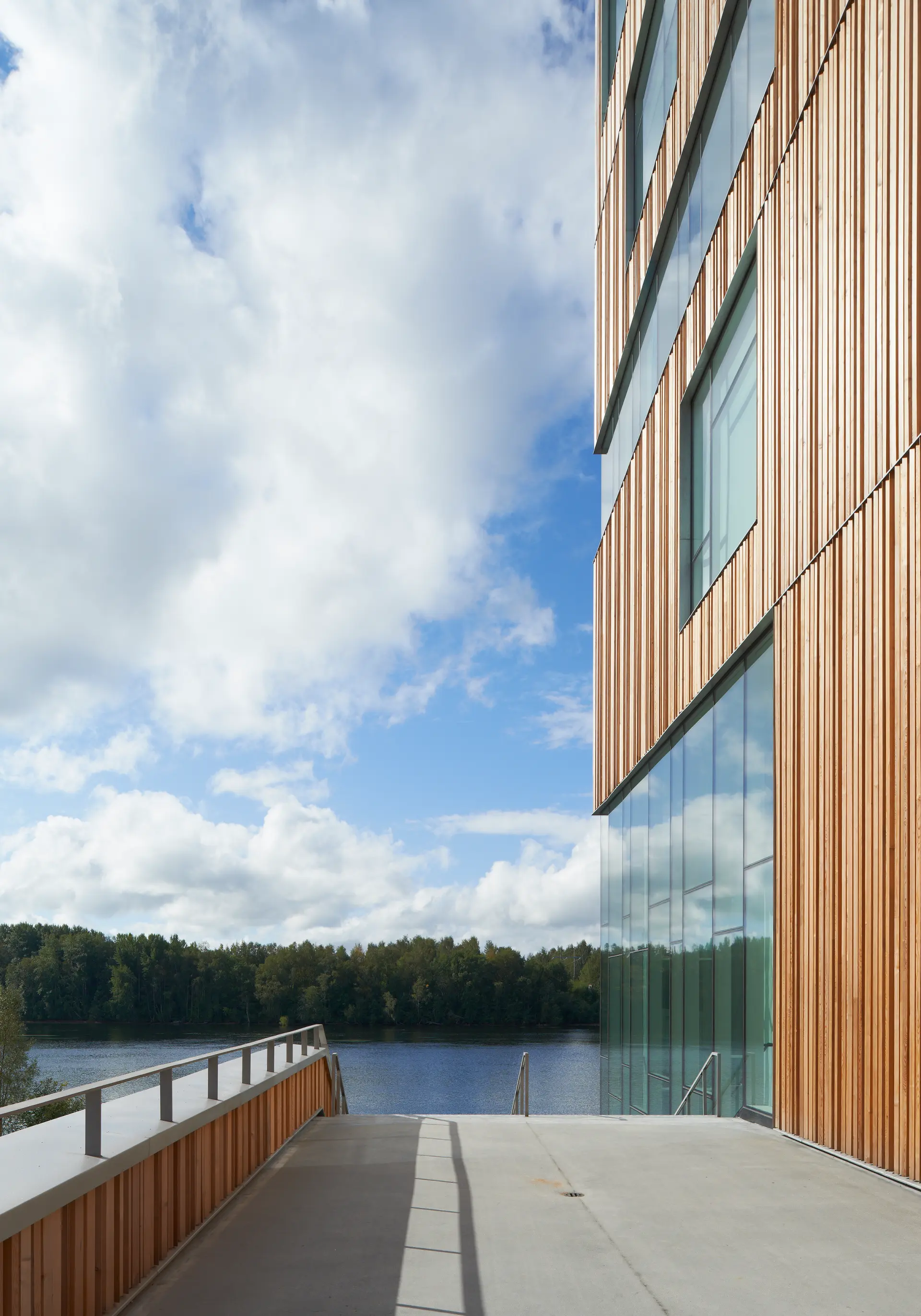

The Umeå river and surrounding forest landscape informed our material choices. Windows reflect the water, while warm wood reflects the Swedish forest. Åke E:son Lindman, 2010
